Slip Gauge PG-002 - High precision carbide measurement tool

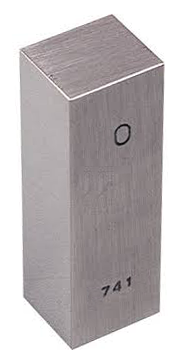

Slip Gauge front view
Slip Gauge side view
Slip Gauge technical diagram

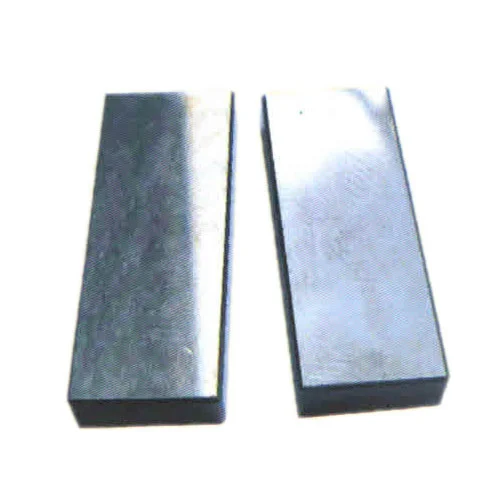

Slip Gauge measurement setup

Technical Diagram

Ø 10.000 ±0.001mm Length: 50mm PG-001

Slip Gauge PG-002

High-Precision Carbide Slip Gauge

In Stock SKU: PG-001-10.000

Carbide Slip Gauges (also called carbide gauge blocks) are ultra-precise measuring standards made from tungsten carbide, used to calibrate instruments, inspect components, and maintain dimensional accuracy in engineering and metrology. Manufactured to the highest standards with NABL calibration certificate included.

Key Specifications

Nominal Diameter 10.000 mm
Tolerance ±0.001 mm
Length 50 mm
Material Tungsten Carbide
Surface Finish Ra 0.1 μm
Accuracy Grade Grade 0

Material Composition

Tungsten Carbide (WC) 94%
Cobalt Binder (Co) 6%

Hardness: 1500-1800 HV | Density: 14.5-15.0 g/cm³

Share Specifications

Dimensional Specifications

Parameter Value Tolerance
Nominal Diameter 10.000 mm ±0.001 mm
Length 50.0 mm ±0.05 mm
Roundness 0.0005 mm Max
Straightness 0.001 mm Max
Surface Roughness Ra 0.1 μm Max

CMC Values

Range (mm) Uncertainty (μm) k=2
1 to 10 0.3 95%
10 to 25 0.4 95%
25 to 50 0.5 95%

Note: CMC values are valid under controlled laboratory conditions at 20°C ± 1°C

Product Inquiry

Get detailed information about Pin Gauge PG-001 or request a custom quote

Contact Us Directly
