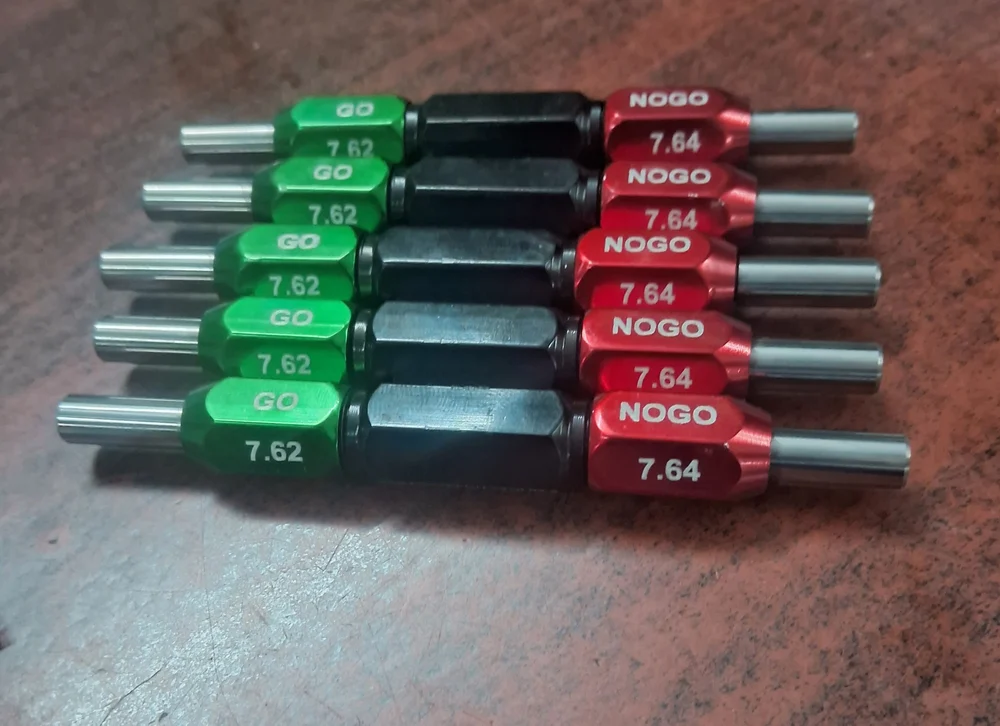

Plug Gauge front view
Plug Gauge side view
Plug Gauge technical diagram
Plug Gauge measurement setup

Technical Diagram

Ø 10.000 ±0.001mm Length: 50mm PG-001

Plug Gauge PG-004

High-Precision Carbide Plug Gauge

In Stock SKU: PG-001-10.000

A Carbide Plug Gauge is a precision tool used to measure the internal diameter (ID) of holes or bores with high wear resistance and dimensional accuracy. The working surface is made of tungsten carbide, making it extremely durable for high-frequency inspection tasks. Manufactured to the highest standards with NABL calibration certificate included.

Key Specifications

Nominal Diameter 10.000 mm
Tolerance ±0.001 mm
Length 50 mm
Material Tungsten Carbide
Surface Finish Ra 0.1 μm
Accuracy Grade Grade 0

Material Composition

Tungsten Carbide (WC) 94%
Cobalt Binder (Co) 6%

Hardness: 1500-1800 HV | Density: 14.5-15.0 g/cm³

Share Specifications

Dimensional Specifications

Parameter Value Tolerance
Nominal Diameter 10.000 mm ±0.001 mm
Length 50.0 mm ±0.05 mm
Roundness 0.0005 mm Max
Straightness 0.001 mm Max
Surface Roughness Ra 0.1 μm Max

CMC Values

Range (mm) Uncertainty (μm) k=2
1 to 10 0.3 95%
10 to 25 0.4 95%
25 to 50 0.5 95%

Note: CMC values are valid under controlled laboratory conditions at 20°C ± 1°C
