Snap Gauge PG-006 - High precision carbide measurement tool

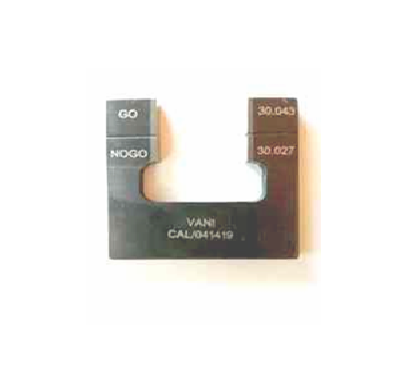

Snap Gauge front view

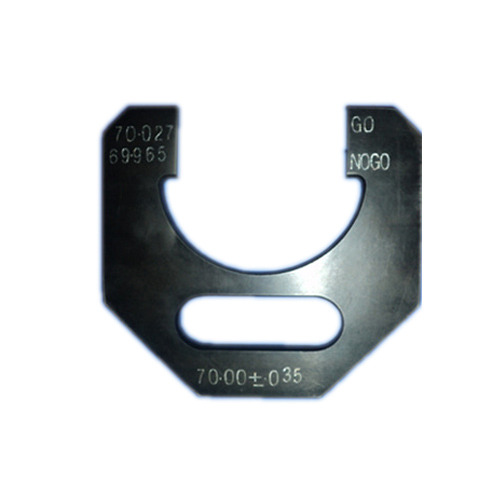

Snap Gauge side view

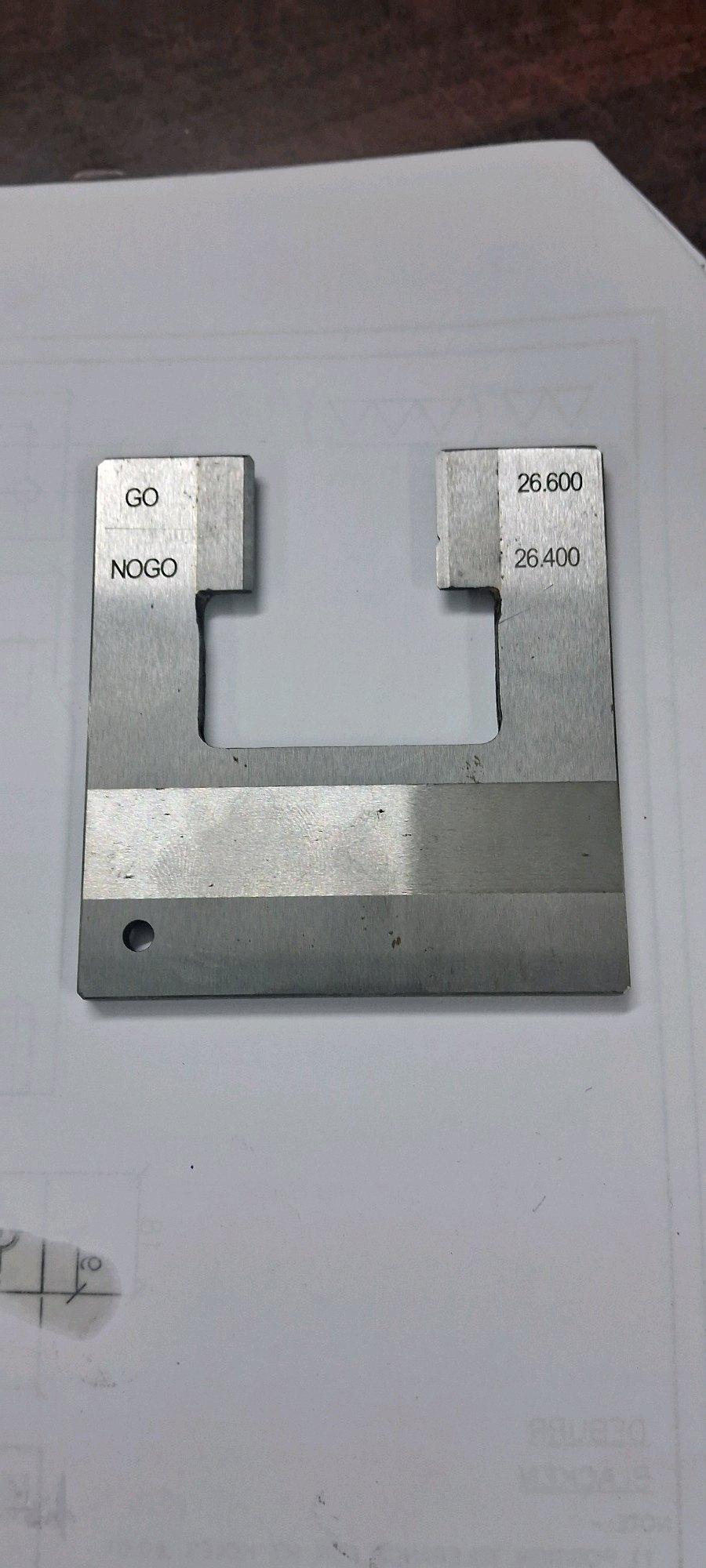

Snap Gauge technical diagram
Snap Gauge measurement setup

Technical Diagram

Ø 10.000 ±0.001mm Length: 50mm PG-001

Snap Gauge PG-006

High-Precision Carbide Snap Gauge

In Stock SKU: PG-001-10.000

Precision-engineered carbide Snap Gauges are precision go/no-go gauges used primarily to check the external dimensions (like diameter or thickness) of parts quickly and accurately during production or inspection. Manufactured to the highest standards with NABL calibration certificate included.

Key Specifications

Nominal Diameter 10.000 mm
Tolerance ±0.001 mm
Length 50 mm
Material Tungsten Carbide
Surface Finish Ra 0.1 μm
Accuracy Grade Grade 0

Material Composition

Tungsten Carbide (WC) 94%
Cobalt Binder (Co) 6%

Hardness: 1500-1800 HV | Density: 14.5-15.0 g/cm³

Share Specifications

Dimensional Specifications

Parameter Value Tolerance
Nominal Diameter 10.000 mm ±0.001 mm
Length 50.0 mm ±0.05 mm
Roundness 0.0005 mm Max
Straightness 0.001 mm Max
Surface Roughness Ra 0.1 μm Max

CMC Values

Range (mm) Uncertainty (μm) k=2
1 to 10 0.3 95%
10 to 25 0.4 95%
25 to 50 0.5 95%

Note: CMC values are valid under controlled laboratory conditions at 20°C ± 1°C
