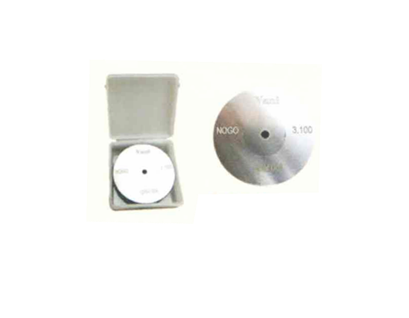

Ring Gauge Box technical diagram
Ring Gauge Box measurement setup

Technical Diagram

Ø 10.000 ±0.001mm Length: 50mm PG-001

Ring Gauge Box PG-009

High-Precision Carbide Ring Gauge Box

In Stock SKU: PG-001-10.000

A Carbide Ring Gauge Box contains a set of precision-engineered ring gauges with tungsten carbide measuring surfaces, used to inspect the external diameters (OD) of cylindrical components such as shafts, pins, bolts, and rods. These are ideal for high-precision, high-volume, and wear-intensive applications. Manufactured to the highest standards with NABL calibration certificate included.

Key Specifications

Nominal Diameter 10.000 mm
Tolerance ±0.001 mm
Length 50 mm
Material Tungsten Carbide
Surface Finish Ra 0.1 μm
Accuracy Grade Grade 0

Material Composition

Tungsten Carbide (WC) 94%
Cobalt Binder (Co) 6%

Hardness: 1500-1800 HV | Density: 14.5-15.0 g/cm³

Share Specifications

Dimensional Specifications

Parameter Value Tolerance
Nominal Diameter 10.000 mm ±0.001 mm
Length 50.0 mm ±0.05 mm
Roundness 0.0005 mm Max
Straightness 0.001 mm Max
Surface Roughness Ra 0.1 μm Max

CMC Values

Range (mm) Uncertainty (μm) k=2
1 to 10 0.3 95%
10 to 25 0.4 95%
25 to 50 0.5 95%

Note: CMC values are valid under controlled laboratory conditions at 20°C ± 1°C
